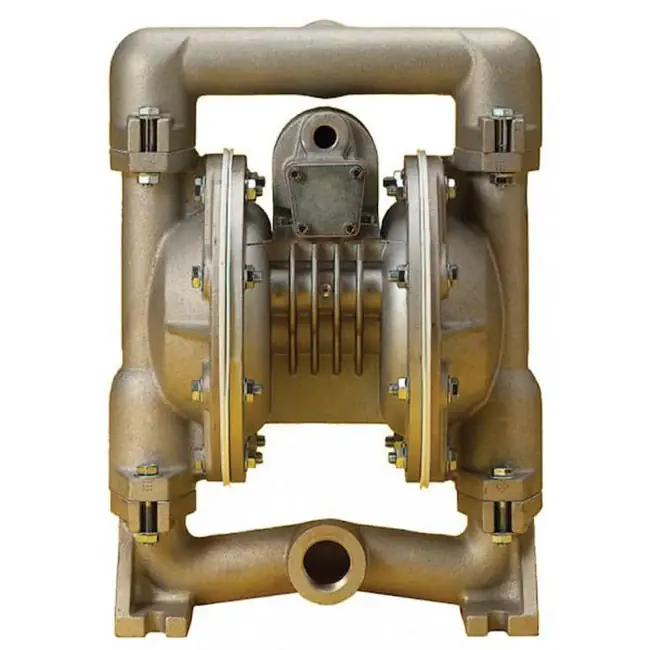

Zeeline by Milton ZE1040UL – 1 In. Double Diaphragm Pump Professional Grade

ZE1040UL – 1 in. Double Diaphragm Pump

Model: ZE1040UL

The Zeeline ZE1040UL is a high-performance, UL-listed 1-in. double diaphragm pump, specifically designed for safe and efficient fluid transfer in demanding industrial applications. With its durable aluminum body and advanced materials, this pump delivers reliable operation for a variety of fluids.

Key Features:

Air Ratio: 1:1, ensuring consistent and reliable pumping performance.

Flow Capacity: Handles up to 37 gallons per minute (GPM), perfect for high-volume fluid transfer needs.

Inlet/Outlet Connections: 1-in. NPT fluid inlet and outlet ports, paired with a 1/4-in. NPT air inlet for seamless compatibility.

Material Construction:

Body: Aluminum for exceptional durability and corrosion resistance.

Diaphragms: Buna N for reliable performance and chemical resistance.

Balls: PTFE for enhanced chemical compatibility and long-lasting operation.

Seats: Aluminum for robust structural support.

Suction Lift:

Dry: Up to 15 feet.

Wet: Up to 25 feet.

Particle Handling: Accommodates particles up to 1/8 in., allowing flexibility in fluid types.

Air Consumption: Operates efficiently at 30 CFM with 50 PSI air pressure, optimizing energy usage.

Compact Design: Stands 15.125 in.es tall with a bolt pattern of 4.250 in.es x 8.250 in.es, enabling easy installation in a variety of configurations.

Additional Information:

The UL listing ensures compliance with safety standards, making the ZE1040UL suitable for use in regulated environments where safety and performance are paramount.

The Zeeline ZE1040UL is an ideal choice for transferring water, chemicals, and other compatible fluids with efficiency and reliability. Its advanced design and UL certification make it a trusted solution for industrial fluid management.

Specifications

Air Ratio: 1:1

Fluid Inlet/Outlet: 1 in. NPT

Max Flow: 37 GPM

Air Inlet Port: 1/4 in. NPT

Body Construction: Aluminum

Diaphragms: Buna N

Balls: PTFE

Seats: Aluminum

UL Listed: Yes

Air Consumption: 30CFM @ 50 PSI

Bolt Pattern: 4.250 in. X 8.250 in.

Height: 15.125 in.

Max Particle Size: 1/8 in.

Suction Lift- Dry: 15 ft.

Suction Lift- Wet: 25 ft.
