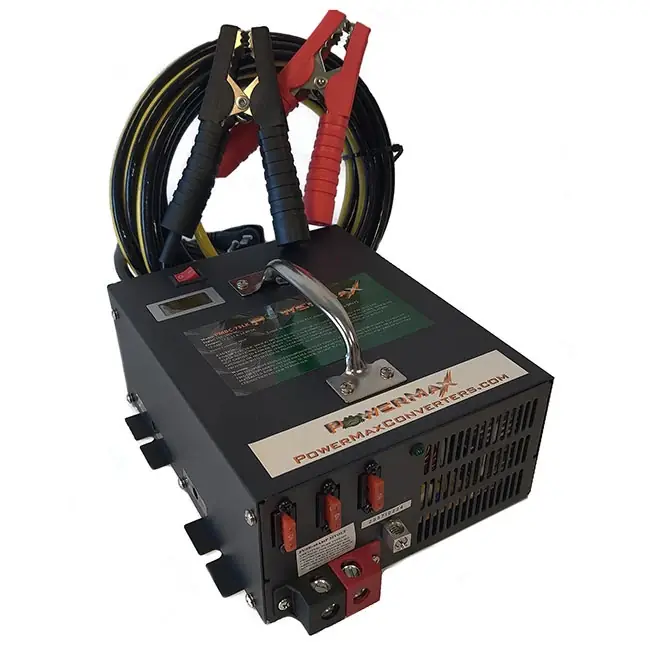

PowerMax PMBC-75 ADJ PMBC Series 75A Battery Charger & Maintainer Place Order

PowerMax PMBC-75 ADJ PMBC Series 75A Battery Charger & Maintainer

Part Number: PMX-PMBC-75 ADJ

Introducing the PowerMax PMBC-75 ADJ Series Battery Charger & Maintainer, the perfect power solution for ensuring optimal battery support during vehicle diagnostics, calibration, reflash, or electronic scans.

The PMBC-75 ADJ Series stands out from standard battery chargers and jump boxes, which can overcharge or lose their charge over time. This high-quality battery voltage maintainer delivers consistent voltage for extended periods, guaranteeing accurate diagnostic results and preventing additional codes from appearing.

Key features of the PMBC-75 ADJ Series include a constant clean fixed output voltage for power supply during diagnostics and reprogramming, with a fully regulated DC output. The output voltage can be adjusted between 13Vdc and 16.5Vdc to meet various vehicle battery requirements, including lithium batteries (typically 13.8V). The smart battery charging mode ensures optimal battery care and maintenance, with factory settings at 14.6Vdc, 13.6Vdc, and 13.2Vdc.

The PMBC-75 ADJ Series is equipped with a digital output voltage display, a 15-foot cable set with clamps, an on/off switch, and an LED indicator to show that the unit is on and working. With multiple protection features, such as overtemp protection, brownout input, reverse polarity, over and under current, you can trust the PMBC-75 ADJ Series to deliver reliable performance.

Invest in the PowerMax PMBC-75 ADJ Series Battery Charger & Maintainer for a top-notch power solution that safeguards your vehicle’s battery during essential diagnostics and maintenance tasks.

Optional 45° angled clamps with 4-AWG cable are also available. (not Included)

Features

Provides a constant clean Fixed Output Voltage for Power Supply during diagnostics and reprogramming through a fully regulated DC output.

Available in 75A outputs

Output Voltage can be Fixed between 13Vdc – 16.5Vdc to meet vehicle battery requirements including Lithium

Smart Battery Charging mode for general battery care and maintenance – 14.6Vdc / 13.6Vdc / 13.2Vdc (Factory Setting)

Digital Output Voltage Display

15 feet cables with clamps

On/Off Switch

LED indicator to show unit is on and working

Multiple Protection Features Include:

Multiple Protection Features Include:

Overtemp protection

Brownout Input

Reverse Polarity

Over-Current

2 Year Warranty

Specifications

Model: PMBC-75 ADJ

DC Output Voltage (No Load) approx.: 14.8V (Adjustable)

Output Amperage, Max Continuous: 75 amps

Maximum Power Output, Continuous: 1065 watts

Maximum AC Current @ 108VAC: 12 Amps

Fan Control: Proportional

Short Circuit, Overtemp, Reverse Polarity Protection: YES

Fixed Output Range: 13V to 16.5V

Dimensions: 7.15×10.5×3.45 inches

Weight 8lbs
