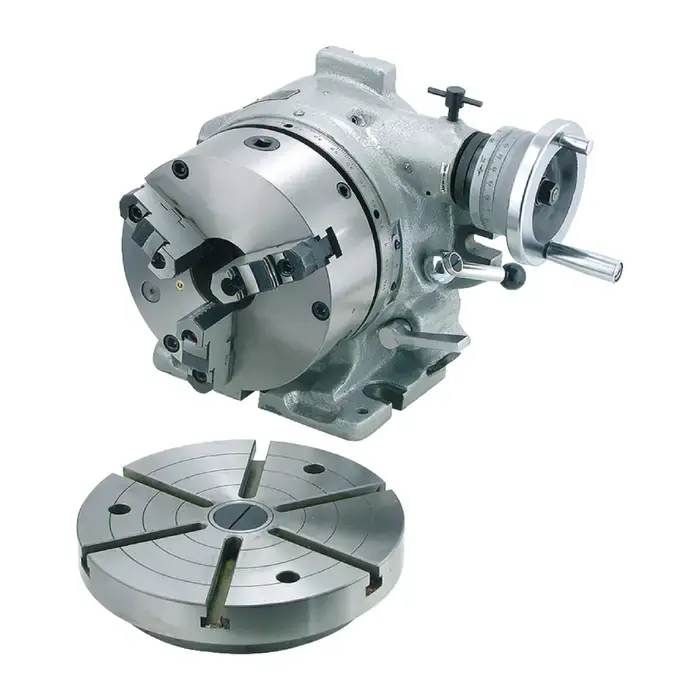

PHASE II 225-228 8″ Chuck Size, 4.60″ Center Height Indexing Spacer Final Sale

6″ & 8″ Phase II Super-dex Rotary Tables. These horizontal or vertical rotary tables from Phase II find applications in the latest milling machining centers which are used for machining up to 5 faces of a workpiece using only one set-up. Superior grade mechanite casting provides the ultimate rigidity and is precision ground to meet the most exacting requirements. The high-precision bearing surfaces ensure ultra-smooth rotation. Phase II Indexing heads or Dividing Plates allow you to precisely divide a circle into a number of divisions or degrees. The indexing feature helps prevent errors during the repetitive adjustments required in indexing work. The dividing plate set is used to divide one 360° table rotation into divisions of 30′. The gear ratio of the compatible horizontal rotary table is 1:90. With 5 full handwheel rotations, 17 divisions are covered and the rest 10/34 by one handwheel rotation. The 10/34 of a handwheel rotation is obtained by using the dividing plates. 6″ indexer has a thru-hole of 1.732″ and weighs about 110 lbs., whereas the 8″ indexer model has a thru-hole of 2.48″ and weighs about 185 lbs.

Benefits

• Accurate readings to minutes.
• Ideal for applications where tolerances are required.
• The engraved graduation eliminates erroneous readings.
• A convenient method of worm adjustment is provided to compensate for wear.
• The dividing plates have been provided with annular holes permitting the required number of divisions of one handwheel rotation.
• Each table is supplied with a signed inspection certificate and an operating certificate.
• Inexpensive option to MasterCAM for drawing up the hole pattern.

Applications

• Designed for milling, drilling, boring, slotting as well as tool-grinding machines.
• Use vertically and horizontally.
• For use as a miniature, desktop machine tool.
• Machining curved surfaces by utilizing circular milling.
• Machining flat surface is set at a certain angle to a given reference.
• Typical use cases include machining the flutes of a milling cutter, cutting the teeth of a gear, milling curved slots, or drilling a bolt hole circle around the circumference of a part.
• Used in Quality control.

Features

• By index plate, divisions of 2,3,4,6,8,12, and 24 are permitted.
• Lathe chuck adjustable to within 0.0005-inch TIR.
• Adjustable satin chrome dials are extremely large in diameter for easy reading.
• All dials are precision ground.
• 15° increments with satin chrome dial.
• 10-second vernier on indexing handles assembly.
• Totally enclosed rugged base casting, precision ground, and parallel.
• The worm and shaft are of one piece hardened and ground.
• Clamping shoes lock spindle without affecting spindle alignment.
• Oiling facilities are provided for all moving parts.
• Low profile.
• Maximum individual spacing error: M25 SECONDS.
• Squareness (base to chuck): 0.0008″
• Parallelism over face: 0.0004″
• Concentricity of chuck: 0.0005″
