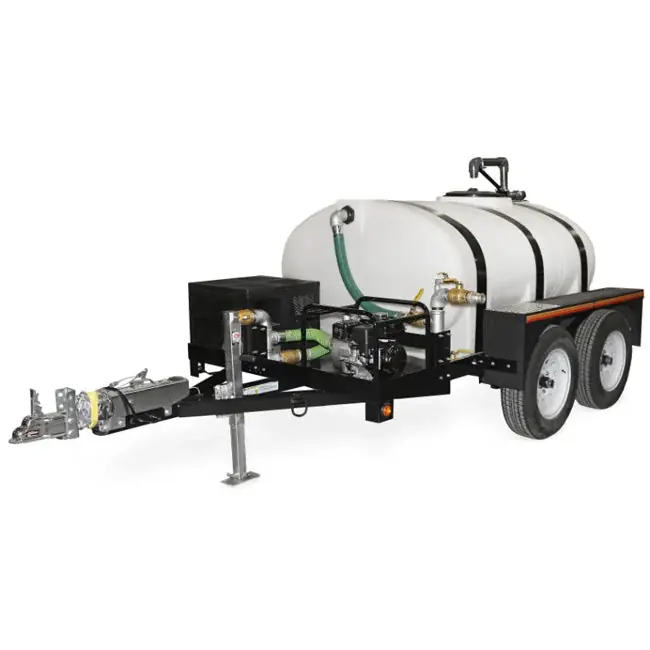

Mi-T-M MWT-0510-2MHD – Water Transport Trailer Genuine

Mi-T-M MWT-0510-2MHD – Water Transport Trailer

MODEL: MWT-0510-2MHD

MWT-0510-2MHD

This water trailer is equipped with a 510-gallon water tank and is ideal for dust control and water transportation.

Tank
510-gallon elliptical low profile 3/8-inch thick polyethylene · 16-inch manhole with 4-inch vent and a sump pump

Central Manifold
Easy-to-operate butterfly brass valves

Plumbing
1 1/2-inch fire hose hook-up with 50-foot x 1 1/2-inch hose and fog nozzle · Break-away hydrant fill with 25-foot x 2 1/2-inch hose · Dual rear spray heads · Garden hose connector · Manifold discharge system · Water hammer prevention valve

Trailer
DOT approved · 12-inch under-clearance at axle · 7,000-lb. side-mount crank jack · Dual leaf spring suspension · Rubber mounted sealed lights · Wire storage basket · Two safety chains with snap hooks · (4) ST225-75 15-inch tires

Semi-Trash Pump
2-inch suction and discharge that handles solids up to 3/4-inch diameter · Heavy-duty powder coated wraparound frame · Silicon carbide mechanical seals · Precision molded cast iron impeller and volute for reduced vibration and wear

Optional Accessoriess (Not Included)

TX-0008 Hard Suction Option – Allows you to draw water from an auxiliary source (pond, water pit, etc.). The fire hose is designed to be used with pressurized water and lays flat for easy storage. Fits all MODEL:s without TX-0024 water bypass option.

TX-0010 Adjustable Trailer Coupler Hitch – Replaces the standard 2-inch ball hitch with a 2-inch trailer hitch with pin-style fastener trailer coupler and hinged ball socket

TX-0019 Lunette Ring Hitch – Replaces the standard 2-inch ball hitch with an 3-inch integrated lunette ring for use with pintle hitches

TX-0024 Water Bypass – Allows you to bypass water from the outlet back to the tank. This can be used to reduce outlet pressure and flow for desired application. Fits all MODEL:s without the TX-0008 hard suction option.

Specifications

Displacement/ Engine: 196cc Honda GX200 OHV

Pump: 2 in. Semi-Trash

Hitch: 2 in. Ball

Axle: (2) 3,500 lb. Tandem with Hydraulic Surge Brakes

Bed Frame: 5 ft. x 8 ft.

Trailer Weight (Loaded): 5,900 lb.

Net Weight: 1580.00 lbs.

Shipping Weight: 1580.00 lbs.

Length: 164.40 in.

Width: 81.60 in.

Height: 69.60 in.
