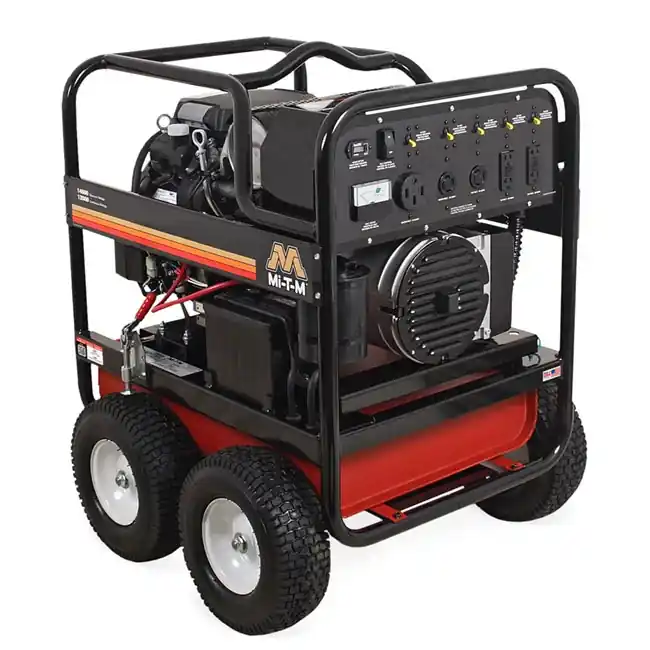

Mi-T-M GEN-14000-1MHE 14000 Watt Gas Powered Generator Trusted Brand

Mi-T-M GEN-14000-1MHE | 14000 Watt Gas Generator

MODEL GEN-14000-1MHE

This 14000-watt generator is built to withstand even the most demanding applications. It is designed with portability in mind, making it easy to move from one job to the next.

Alternator
Total harmonic distortion (THD) less than 5% · Copper windings

Engine
Electric start – sealed battery included

Frame
Reinforced powder coated steel frame · 13-inch flat-free tires

Components
Easy-access and protected control panel with magnetic circuit breakers and GFCI-protected receptacles · Large low tone muffler · Easy-to-read fuel gauge · Idle control · Voltmeter/hour meter · Heavy-duty industrial air cleaner · USDA/USFS-approved spark arrestors

Noise level tested at seven meters (75% load). Rating represents minimum noise level rating.

Lead time from order date 2 to 3 weeks

Specifications

Max. AC Output: 14000 watts

Rated AC Output: 12000 watts

Displacement/Engine: 688cc Honda GX630 OHV

Alternator: Brushless 120V/240V, 60Hz

Max. Amps (120V/240V): 116.7/58.3

Cont. Amps (120V/240V): 100.0/50.0

Receptacles:

(2) 120V, 20A GFCI Duplex

(1) 120V, 30A Twist Lock

(1) 120V/240V, 30A Twist Lock

(1) 120V/240V, 50A

Circuit Breakers:

(2) 20A Toggle Circuit Breakers, Single Pole

(1) 30A Toggle Circuit Breaker, Single Pole

(1) 30A Toggle Circuit Breaker, Double Pole

(1) 50A Toggle Circuit Breaker, Double Pole

Rated Speed: 3600 RPM

Decibel Rating: 77.5

Fuel Capacity: 13.2 gallons

Run Time (At Full Load): 8.0 hours

Weights & Dimensions:

Net Weight: 508.00 lbs.

Shipping Weight: 568.00 lbs.

Length: 31.50 in.

Width: 30.50 in.

Height: 37.50 in.
