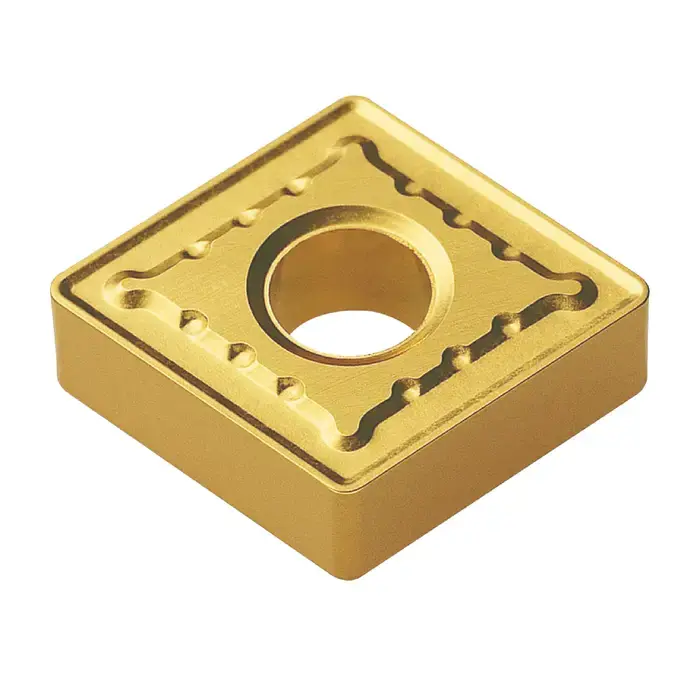

KORLOY 1-02-024237 – CNMG866-GR NC3030, 80° Diamond, Indexable Carbide Turning / Boring Insert While Supplies Last

Applications

This insert supports cutting speeds from 427 to 820 sfm, feeds between 0.016 and 0.039 in/rev, and depths of cut up to 0.591 inches. It is designed for medium to low-speed roughing with the capability to handle interrupted cutting conditions effectively. It is suitable primarily for ISO P25-P35 steels and secondarily for M25-M35 stainless steels. The negative rake chipbreaker and robust 80° diamond shape make it ideal for general to interrupted cutting applications, especially in roughing scenarios where edge strength and durability are critical.

Features

• 80° Diamond Shaped Indexable Inserts.
• Versatile and dependable, “C” shaped inserts are one of the most popular shapes in the industry.
• Negative inserts can provide up to 8 cutting edges, four 80° cutting edges and four 100° cutting edges (seperate holder needed to utilize 100° cutting edge).
• The 100° cutting edges are ideal for facing operations.
• Available in multiple chipbreakers & grades.
