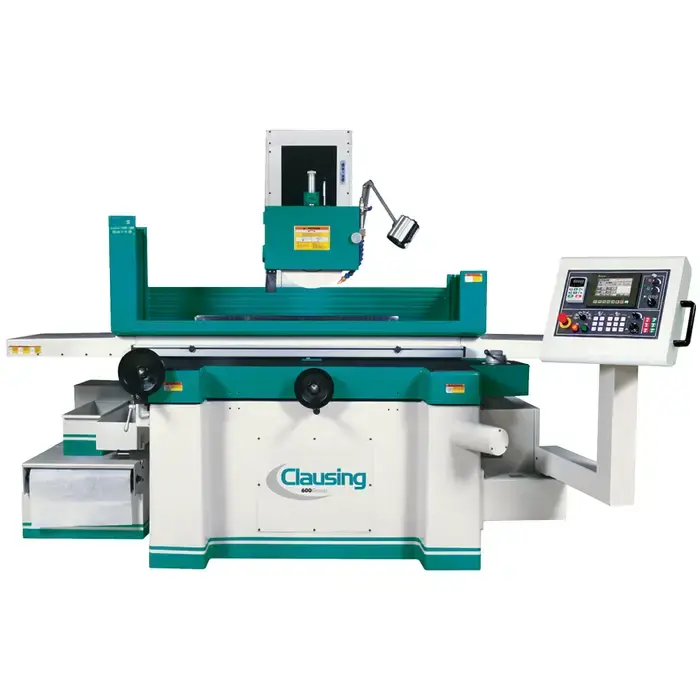

Fresh Stock CLAUSING CSG1236ASDIII 12″ x 36″ Table, 11 HP Surface Grinder

Features

• On ASDIII models, you can set the vertical zero point, finish grinding volume, target point and the grinding wheel rise-up point.
• The machine features a simple and clear digital display & touch control panel for easy learning and operation.
• Vertical feed powered by dual motors, AC motor for rapid up/down and stepping motor for micro downfeed positioning, slow auto downfeed and slow up/down.
• Vertical positioning is displayed on the screen showing present spindle and setting the start point, rough grinding volume, finish grinding volume, downfeed volume for finish grinding, target point, rise up point, intermittent spark-out.
• Cross transverse travel powered by DC servo motor, allows step feed and continuous infeed grinding.
• The speed of wheel dressing can be adjusted on the control panel.
• Wide, deep base and honeycomb ribbed column on the 10 series, designed for heavy-duty grinding.
• High quality, ribbed, cast iron table, saddle and base.
• All slideways and screws are fully oiled by an automatic continuous lubrication system to minimize wear on slideways and screws.
• High Grade Anti-Wear SlidewaysThe saddle rides on precision, hand-scraped double V ways, and the table rides on precision hand-scraped V and flat ways coated with “TURCITE-B”.
• Presettable hydraulic table speed control allows operator to pre-set speed rate, so you can have the same speed rate every time the hydraulic table is engaged.
• Ballscrew for cross travel, powered by DC servo motor.

Ships direct from factory.

Includes

• Chuck not included.
