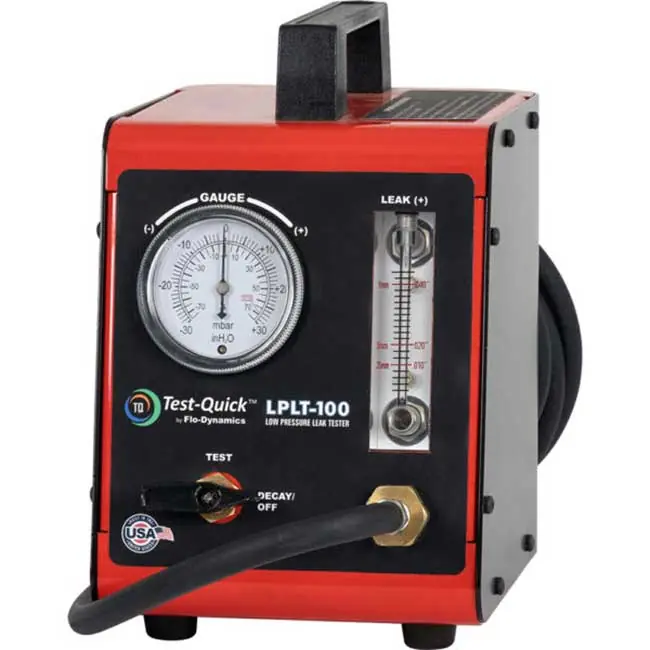

Flo-Dynamics LPLT-100 – EV Battery Pack Leak Tester Luxury

Flo-Dynamics LPLT-100 – EV Battery Pack Leak Tester

MODEL : LPLT-100

PART NO: 40400062

Introducing the Test-Quick LPLT-100 Low-Pressure Leak Tester by Flo-Dynamics, a Ford-approved innovation designed to set a new standard in the automotive industry for leak testing. This tool stands out as the most cost-effective and straightforward solution for detecting low-pressure leaks without the risk of contamination from vapor or smoke leak detection dyes.

Key Features:

Ford Approved: Developed in close collaboration with Ford Engineering, ensuring compliance with EV battery pack testing procedures.

100% Filtered and Moisture-Free Air Use: Guarantees that EV battery packs are tested without contamination, maintaining the integrity of the seal post-service.

Versatile Testing Capabilities: Equipped with a flow meter and gauge for two modes of testing – leak flow rate and pressure decay, offering comprehensive diagnostics.

Convenient and Efficient: A lengthy 120-inch (3048 mm) test supply line, paired with a handheld and lightweight design, ensures ease of use across various testing scenarios.

Optional Glove Testing Adapter: With the GTA-10 adapter, the LPLT-100 can also test insulated gloves quickly and accurately, fulfilling OSHA testing requirements efficiently.

Uses only shop air (75 – 175 psi)

Supply pressure: 14” WC +/- 1”

Tests with 100% filtered and moisture free air

Designed in collaboration with Ford Engineering to comply with EV battery pack testing procedures

Flow meter and gauge provides two testing modes – leak flow rate or pressure decay

Test supply line: 120”, 3048 mm

Handheld and lightweight

Dimensions: 10 ¾” H x 7” W x 10”D

Weight: 9.5 lbs

Limited one year warranty

Ford approved

Specifications

Power Source: Uses only shop air (75 – 175 psi)

Supply Pressure: 14” WC +/- 1”

Air Quality: Tests with 100% filtered and moisture-free air

Design Collaboration: Designed in collaboration with Ford Engineering to comply with EV battery pack testing procedures

Testing Modes: Flow meter and gauge provides two testing modes – leak flow rate or pressure decay

Test Supply Line: 120”, 3048 mm

Portability: Handheld and lightweight

Dimensions: 10 ¾” H x 7” W x 10” D

Weight: 9.5 lbs

Warranty: Limited one-year warranty

Certification: Ford approved
