Certified FOUNTAIN INDUSTRIES SprayMaster SM9600SS-231 Stainless Spray Cabinet PN 65054-01

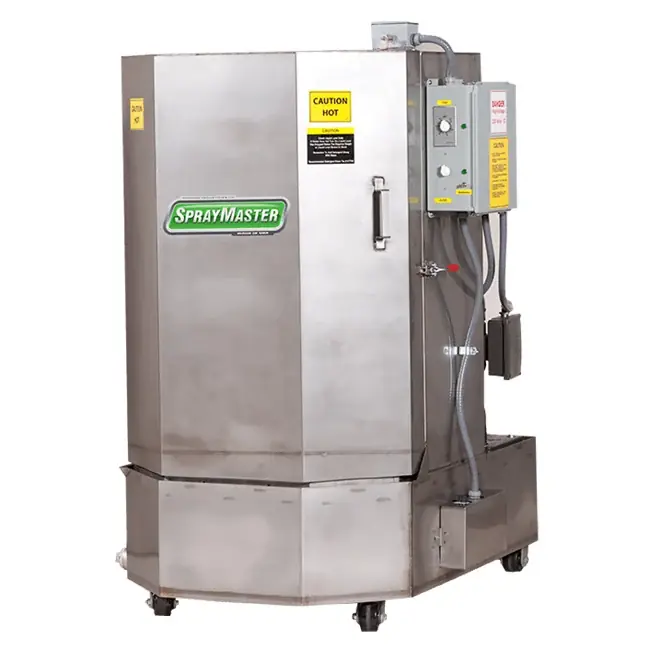

FOUNTAIN INDUSTRIES SprayMaster SM9600SS-231 85-Gallon Front Loading Stainless Steel Spray Wash Cabinet PN 65054-01

Part Number: 65054-01

The Fountain Industries SprayMaster SM9600SS-231 is a premium stainless steel 85-gallon front-loading spray wash cabinet designed for demanding industrial applications. It features a 30 in. turntable, 3 HP high-volume pump with stainless steel impeller, and dual 4.5 kW heaters (9.0 kW total). Built with a gasket-free stainless steel front door and stainless steel nozzles, this model delivers reliable, low-maintenance operation. Equipped with a 12 in. disc skimmer, fold-down center spray bar, adjustable cycle and heat timers, and casters for portability. Ideal for cleaning large or heavily soiled parts using aqueous solutions.

Features:

All stainless steel construction including door and nozzles

85-gallon spray cabinet capacity

30 in. friction-driven turntable with 1000 lb. load capacity

3.0 HP stainless steel impeller pump

9.0 kW total heating capacity (two 4.5 kW heaters)

Adjustable cycle timer (0–60 minutes)

Adjustable heat timer for overnight temperature maintenance

Stainless steel gasket-free door for leak-free operation

12 in. disc skimmer with 45-minute timer

Fold-down center spray bar for small parts

Liquid level sensor protects heater elements

Removable tree rack included

Mounted on four casters for mobility

Specifications

Tank Capacity: 85 gallons

Electrical: 220 VAC / 60 Hz / 1 Phase

Power Consumption: 60 Amps

Meets 0.75 freeboard requirements

Inside Tank Dimensions: 30 in. Diameter Turntable x 40 in. Working Height

Overall Dimensions: 42 in. L x 50 in. W x 68 in. H

Shipping Weight: 1100 lbs
